TL;DR:
- UV curing technology uses ultraviolet light to instantly harden adhesives, coatings, and inks by activating photoinitiators. It replaces long drying cycles with rapid curing, boosting production speed, reducing energy costs, and improving product durability. Proper validation of irradiance, wavelength matching, and process parameters is essential to ensure consistent and reliable results.
UV curing technology is defined as a photochemical process that uses ultraviolet light to instantly harden adhesives, coatings, and inks by activating photoinitiators within the material. For manufacturers and industrial professionals, this process replaces thermal ovens and long drying cycles with curing times that compress to seconds. These uv curing technology guides cover the full process, from how the photochemical reaction works to system selection, validation protocols, and real-world production benefits. Whether you manage a high-volume assembly line or a specialty coating operation in Middle Island, understanding UV curing gives you a direct path to faster throughput and lower operating costs.
How does the UV curing process work in industrial applications?
UV curing begins when ultraviolet light strikes a photoinitiator molecule embedded in a liquid coating, adhesive, or ink. The photoinitiator absorbs photons and generates free radicals or cations, which then trigger rapid cross-linking of polymer chains. This cross-linking transforms the liquid into a solid, durable film in a fraction of a second.
Three parameters control whether a cure succeeds or fails:
- Irradiance is the intensity of UV light delivered to the substrate surface, measured in milliwatts per square centimeter (mW/cm²). Higher irradiance drives faster surface cure.
- Dose is the total energy delivered over time, measured in millijoules per square centimeter (mJ/cm²). Dose determines depth of cure and adhesion strength.
- Wavelength matching means the UV light spectrum must align with the photoinitiator’s absorption peak. A mismatch leaves material under-cured regardless of intensity.
Shadow zones present a real production challenge. Any area of the substrate that the UV light cannot reach directly will not cure. Opaque substrates, complex geometries, and overlapping components all create shadow zones that require supplemental light sources or process redesign.
Irradiance measurements must be taken at the actual part location and geometry, not at the lamp emitter. Intensity drops rapidly with distance, so the number on a data sheet rarely reflects what the part actually receives.
Pro Tip: Set up your radiometer at the exact working distance and part orientation used in production. A reading taken six inches higher than your actual part can overstate effective irradiance by a significant margin, leading to under-cured product reaching the line.
What are the key benefits of implementing UV curing systems?
UV curing delivers measurable gains across four operational categories: speed, energy, space, and product quality.
Speed is the most visible advantage. Curing time drops from hours to as little as 0.1–10 seconds depending on material and light intensity. That compression means production lines run faster without adding shifts or floor space.
Energy savings are equally significant. Switching to UV LED systems typically produces 40–60% energy reduction compared to traditional mercury lamp systems. Lower energy draw reduces utility costs and supports sustainability targets without sacrificing output.
Equipment lifespan and ROI favor UV LED technology strongly. Modern UV LED systems deliver 10,000–25,000 hours of operating life, with return on investment typically realized within 12–18 months through reduced lamp replacement and maintenance costs. That payback window makes capital approval straightforward for most production managers.
Space and layout also improve. Compact inline UV curing units replace large thermal ovens, freeing floor space for additional production capacity or improved material flow. A thermal oven that occupies 40 linear feet of a production line can be replaced by a UV cure station measuring a fraction of that footprint.
Product durability rounds out the case. UV-cured coatings form tightly cross-linked polymer networks that resist abrasion, chemicals, and dimensional change better than air-dried or thermally cured alternatives. For flooring, automotive, and electronics applications, that durability directly reduces warranty claims and rework costs.

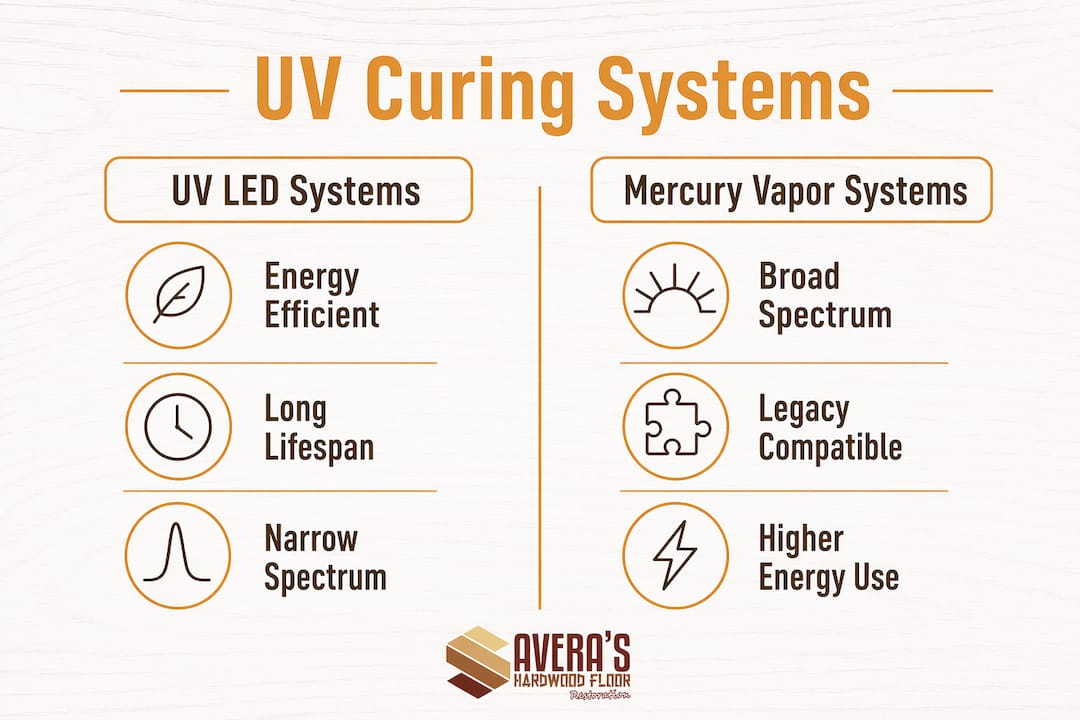

What UV curing systems are available and how do they compare?
Two primary system types dominate industrial UV curing: UV LED and mercury vapor (arc lamp). Each has distinct operational characteristics that affect formulation compatibility, maintenance requirements, and total cost of ownership.
| Feature | UV LED systems | Mercury vapor systems |
|---|---|---|
| Energy efficiency | 40–60% lower consumption | Higher baseline draw |
| Lamp lifespan | 10,000–25,000 hours | 1,000–2,000 hours |
| Wavelength output | Narrow, targeted spectrum | Broad spectrum (200–450 nm) |
| Heat output | Minimal | Significant |
| Warm-up time | Instant on/off | Requires warm-up period |
| Formulation compatibility | Requires photoinitiator matching | Works with most existing formulations |
| Maintenance | Low | Frequent lamp replacement |
Mercury vapor systems produce a broad spectrum that works with most legacy adhesive and coating formulations. That compatibility makes them easier to integrate into existing production without reformulation. UV LED systems emit a narrow, targeted spectrum, which means traditional broad-spectrum adhesives may under-cure without chemical adjustment. Switching to LED requires confirming that your photoinitiator chemistry matches the LED’s output wavelength.
UV flood lamp selection should prioritize irradiance uniformity, wavelength output, cooling capacity, and control integration over peak irradiance alone. A lamp with high peak intensity but poor uniformity across the cure zone produces inconsistent results at the edges of the part.
Pro Tip: Request uniformity data from your lamp supplier before purchasing. Irradiance uniformity within ±10–15% across the full cure zone is the standard that separates reliable production systems from those that create edge-cure failures.
How do manufacturers validate and optimize their UV curing processes?
Process validation is the step most manufacturers skip, and it is the step that causes the most production failures. Validation replaces guesswork with objective, repeatable data that defines your safe operating window.
Follow these steps to build a reliable validation protocol:
-
Benchmark against your current process. Document cure time, adhesion strength, and surface hardness for your existing method. These numbers become your baseline targets for the UV process to meet or exceed.
-
Measure irradiance at production conditions. Place your radiometer at the actual part location, at the actual working distance, with the conveyor running at production speed. Radiometric measurements must reflect actual part geometry, not idealized lab conditions.
-
Run cross-hatch adhesion tests. Cross-hatch adhesion and rub resistance tests are the industry standard for confirming cure quality before full production rollout. A properly cured coating passes cross-hatch with no flaking and withstands a defined number of solvent rubs without lifting.
-
Test across your full speed range. Cure dose changes as conveyor speed changes. Run validation at your minimum, target, and maximum production speeds to confirm the process holds across all operating conditions.
-
Establish documented operating windows. Define the acceptable range for irradiance, dose, conveyor speed, and working distance. Any parameter outside that window triggers a hold, not a judgment call.
Pro Tip: Run validation on your slowest-curing material first. If your process handles that formulation reliably, faster-curing materials will perform even better under the same conditions.
Data-driven process control removes the subjectivity that causes batch-to-batch variation. Once your operating window is documented, any deviation from those parameters becomes a measurable event, not an opinion.
Key Takeaways
UV curing technology delivers the fastest path to production efficiency when irradiance, dose, wavelength, and formulation are validated together at actual production conditions.
| Point | Details |
|---|---|
| Curing speed advantage | UV curing compresses cure time to seconds, replacing multi-hour thermal cycles. |
| LED energy savings | UV LED systems reduce energy consumption by 40–60% versus mercury vapor lamps. |
| Validation is non-negotiable | Cross-hatch adhesion and rub resistance tests confirm cure quality before full production. |
| Irradiance uniformity matters | Uniformity within ±10–15% across the cure zone prevents edge failures and inconsistent adhesion. |
| LED requires reformulation | Switching from mercury to LED systems requires photoinitiator chemistry matched to the LED spectrum. |
What we have learned from UV curing in real production environments
After working with UV-curable finishes in demanding production settings, one lesson stands out above all others: manufacturers consistently overestimate what their UV system delivers based on data sheets alone.
Peak irradiance numbers look impressive on paper. The reality at the part surface, after accounting for working distance, part geometry, and conveyor speed, is often significantly lower. We have seen production lines running at what engineers believed was a validated process, only to find that actual irradiance at the part was well below the threshold needed for full cure. The product looked fine. It failed in the field.
The second lesson is about LED adoption. The energy and maintenance arguments for UV LED are real and compelling. But the transition from mercury vapor to LED is not a drop-in replacement. Photoinitiator chemistry must match the LED’s narrow spectrum, and that requires working with your formulation supplier before you swap lamps. Skipping that step is the most common and most expensive mistake we see in LED conversions.
The third observation is about space. The footprint reduction from replacing thermal ovens with inline UV stations is genuinely transformative for plant layout. We have watched facilities reclaim significant floor space and redirect it toward additional production capacity. That is a benefit that rarely appears in the initial ROI calculation but consistently shows up in the first year of operation.
The guide to UV light curing that actually serves manufacturers is one that treats validation as the center of the process, not an afterthought. Get your measurements right. Match your chemistry. Document your operating window. Everything else follows from those three disciplines.
— Savera
Saverawoodfloorrefinishing brings UV curing technology to Long Island floors
Saverawoodfloorrefinishing applies the same UV curing principles used in industrial manufacturing to hardwood floor refinishing across Middle Island and Long Island. Our UV-curable finish process cures instantly, so floors are ready for furniture and foot traffic the same day in most cases. We combine dust-free sanding with low-VOC, odor-free water-based finishes for a result that is cleaner, faster, and more durable than traditional refinishing. For homeowners, property managers, and commercial spaces in Middle Island, our hardwood floor refinishing services deliver the speed and quality that UV technology makes possible. Call us at 631-866-1972 or visit saverawoodfloorrefinishing.com to schedule your project.
FAQ
How does UV curing work at a basic level?
UV light activates photoinitiator molecules in a coating or adhesive, triggering rapid polymer cross-linking that hardens the material in seconds. The process requires matching the UV wavelength to the photoinitiator’s absorption spectrum.
What is the curing time advantage of UV systems over thermal methods?
UV curing reduces cure time to as little as 0.1–10 seconds compared to hours required by traditional thermal ovens. That speed directly increases production throughput without adding equipment or labor.
Do UV LED systems work with all existing adhesive formulations?
No. UV LED systems emit a narrow spectrum that may not activate photoinitiators designed for broad-spectrum mercury lamps. Formulation adjustment is required when switching from mercury to LED systems.
What tests confirm that a UV curing process is working correctly?
Cross-hatch adhesion and rub resistance tests are the standard validation methods for UV-cured coatings. These objective tests replace visual inspection and confirm full cure before production rollout.
How much energy do UV LED systems save compared to mercury lamps?
UV LED systems typically reduce energy consumption by 40–60% compared to mercury vapor systems. Combined with a lamp lifespan of 10,000–25,000 hours, the operational savings support ROI within 12–18 months.
