UV Curing Floor Workflow: A Professional’s 2026 Guide

TL;DR:

A UV curing floor workflow completes within a day by using ultraviolet light to harden coatings instantly, enabling same-day walkability. Proper surface preparation, precise finish application, and controlled UV activation reduce defects, improve hardness, and lower VOC emissions significantly. Consistent maintenance, dust control, and careful workflow adherence are essential for achieving reliable, high-quality results.

A UV curing floor workflow is defined as a four-stage process that uses ultraviolet light to harden floor coatings within seconds, enabling same-day walkability and eliminating the multi-day cure times required by traditional polyurethane finishes. UV-cured floor finishes achieve a MOHR hardness rating above 80, compared to roughly 60 for conventional poly. That hardness gap translates directly into fewer callbacks, longer finish life, and faster project turnover. For hardwood floor refinishing contractors in Smithtown and across Long Island, this process is the single biggest operational upgrade available in 2026.

UV curing uses ultraviolet light to trigger a fast chemical reaction that solidifies the coating within seconds, unlike traditional finishes requiring hours or days. The result is a finish that resists scratching, maintains clarity under heavy foot traffic, and cuts VOC emissions by up to 90% compared to solvent-based coatings. That reduction matters for indoor air quality, especially in occupied homes, restaurants, and commercial spaces.

What are the main stages of a UV curing floor workflow?

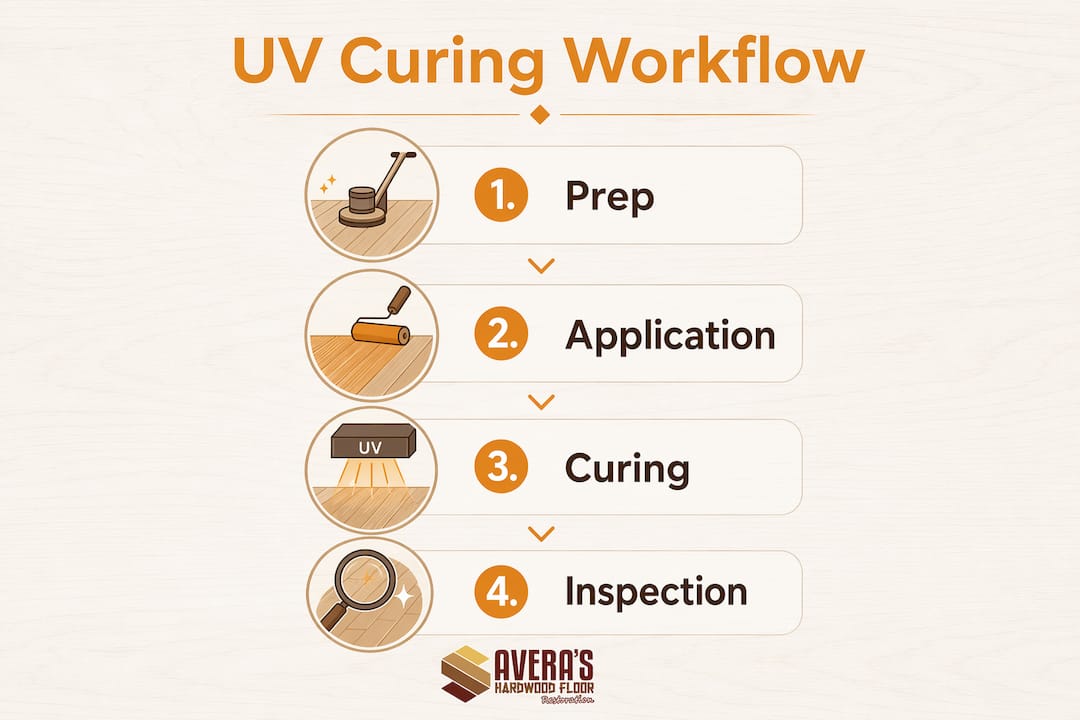

The professional UV curing floor workflow runs in four distinct stages: surface preparation, finish application, UV light activation, and final inspection. Each stage depends on the one before it. Skipping or rushing any step creates defects that are locked in permanently once the UV lamp passes.

Stage 1: Dust-free sanding and surface prep. Sanding opens the wood grain and creates a clean mechanical bond for the UV finish. Contractors use a grit progression, typically starting at 36 or 40 grit and finishing at 80 or 100 grit, then vacuum with HEPA-filtered equipment to remove all dust before coating. Any remaining dust becomes a defect the moment the finish cures.

Stage 2: UV finish application. UV-sensitive liquid finish is applied by roller or spray in a thin, even coat. UV finishes carry solids content near 100%, compared to roughly 40% solids in traditional polyurethanes. That difference means less material per square foot and more predictable coverage calculations.

Stage 3: UV light activation. The curing machine passes over the wet finish and activates the coating with high-intensity ultraviolet light. Each section cures in 5–20 seconds, and the entire project can reach walkability the same day. That speed is the core operational advantage over traditional methods.

Stage 4: Final inspection and acceptance. After curing, the contractor inspects the surface under raking light for any missed areas, debris inclusions, or uneven sheen. Furniture and foot traffic can return immediately after the final cure pass, which is the outcome clients in commercial and residential settings value most.

Pro Tip: Set up a physical barrier between your sanding area and your curing zone before you start. A batch-processing layout that separates prep from application prevents airborne dust from landing on wet finish before the lamp passes.

What tools and materials are required for an effective UV curing floor workflow?

The right equipment determines whether your floor coating workflow runs on schedule or stalls. UV curing requires three categories of gear: sanding machinery, finish materials, and curing equipment.

Sanding and surface prep equipment

Dust-free drum or belt sanders paired with HEPA-filtered vacuums handle the prep stage. Edge sanders and detail tools address perimeters and corners. The goal is a surface that is mechanically clean and free of contamination before any finish touches the wood.

UV finish materials

UV-sensitive floor coatings come in water-based and 100% solids formulations. The 100% solids versions offer the highest coverage rate, approximately 400 square feet per gallon, compared to roughly 250 square feet per gallon for traditional polyurethanes. That coverage advantage directly lowers material cost per project. Always verify the finish is rated for site-applied UV curing, not factory application, since the lamp intensity and distance requirements differ.

UV curing machines

UV curing machines use mercury vapor lamps or LED UV arrays to deliver high-intensity ultraviolet light at a controlled distance from the floor surface. Mercury vapor lamps produce broad-spectrum UV output suited for most commercial UV floor finishes. LED UV arrays run cooler and have longer lamp life but require finishes formulated for their specific wavelength range. Lamp irradiance declines over time, so track operating hours and replace lamps on schedule to maintain consistent cure quality.

Equipment category	Key specification	Why it matters
Dust-free drum sander	HEPA filtration, variable speed	Eliminates airborne dust that contaminates wet finish
UV curing machine	Lamp type, irradiance output	Determines cure speed and finish hardness
UV floor finish	Solids content near 100%	Higher coverage rate, lower material cost per sq ft
Safety gear	UV-blocking goggles, gloves	Protects operators from UV exposure during curing pass
Inspection light	Raking or UV inspection mode	Reveals dust nibs and debris before curing locks them in

Pro Tip: Keep at least one spare lamp in your job site kit. Lamp irradiance consistency is the single most common cause of uneven cure quality, and reactive downtime on a same-day project destroys your schedule and your reputation.

How to execute a step-by-step UV cured floor finishing process

A detailed sequence separates contractors who get consistent results from those who troubleshoot defects after every job. The steps below reflect the full floor coating workflow from raw wood to cured finish.

Establish your grit progression. Start with 36 or 40 grit to remove old finish and level the surface. Progress through 60 grit, then finish with 80 or 100 grit. Each pass removes the scratch pattern from the previous grit. Skipping grits leaves visible scratches that the UV finish will magnify.
Vacuum and tack the surface. Use a HEPA-filtered vacuum after each sanding pass. Follow with a dry tack cloth to capture fine particles. Any dust left on the surface will be permanently embedded once the UV finish cures.
Apply base stain or color coat if required. Site-applied UV finishes allow custom color blending that factory-prefinished floors cannot match. Apply stain evenly, allow it to penetrate, and wipe excess before it dries. Let the stain fully dry before applying UV finish over it.
Apply the UV finish coat. Roll or spray the UV-sensitive liquid finish in thin, even passes. Work in sections that match your curing machine’s pass width. Avoid overlapping wet edges, which create ridges after curing.
Use inspection mode before curing. Most professional UV curing machines include an inspection mode that illuminates the wet finish without triggering the cure reaction. UV finish remains workable until exposed to full UV light, so use this window to spot and remove dust nibs with a fine brush or tack cloth. This step prevents post-cure defects that would otherwise require sanding and recoating.
Execute the UV cure pass. Move the curing machine at a steady, controlled pace over each section. Maintain the manufacturer-specified distance between the lamp and the floor surface. Rushing the pass or varying the distance produces uneven hardness across the finish.
Inspect the cured surface. Check under raking light for any soft spots, inclusions, or sheen inconsistencies. Address any issues before the client walks the floor.

Key quality checkpoints at each stage:

Sanding: no visible cross-grain scratches before finish application
Application: even wet film thickness with no puddles or thin spots
Pre-cure inspection: zero visible dust nibs or debris in the wet film
Post-cure inspection: uniform sheen and hardness across the full surface

What are common hurdles in UV curing floor workflows and how to troubleshoot them?

Every contractor who adopts UV curing encounters the same set of operational challenges. Knowing them in advance keeps your projects on schedule.

Lamp irradiance decline. UV lamps lose output intensity as they age. A lamp that appears to be working can deliver insufficient irradiance, producing a soft or tacky cure. Track lamp hours and replace on the manufacturer’s schedule, not when the lamp visibly fails.
Dust contamination. Airborne dust from sanding is the most common cause of finish defects. A physically separated curing zone prevents cross-contamination. Never sand and coat in the same open area at the same time.
Material coverage miscalculations. UV finishes with near-100% solids content behave very differently from traditional polyurethanes. Contractors who estimate material quantities based on polyurethane experience consistently over-order. Recalibrate your coverage estimates using the UV finish manufacturer’s data sheet.
Uneven curing from inconsistent machine speed. Varying your walking pace during the cure pass changes the UV dose the finish receives. Practice a consistent pace on scrap material before your first live project.
Client expectations on sheen and appearance. UV-cured finishes cure to a fixed sheen level determined by the product. Communicate this to clients before application, since adjusting sheen after curing requires sanding and recoating.

Pro Tip: UV-curable systems provide ROI within 10–20 projects due to faster throughput and higher coverage rates. Track your project completion times and material costs from your first UV job forward so you can quantify the payback clearly.

Key Takeaways

A professional UV curing floor workflow delivers same-day walkability, superior hardness, and lower VOC emissions by combining dust-free surface prep, 100% solids UV finish, and high-intensity UV light activation in a controlled, sequenced process.

Point	Details
Cure speed advantage	Each floor section cures in 5–20 seconds, enabling same-day project completion.
Hardness superiority	UV-cured finishes reach MOHR hardness above 80, outperforming traditional polyurethane at roughly 60.
Dust control is non-negotiable	Physically separate your sanding and curing zones to prevent contamination defects.
Inspection mode saves rework	Use the machine’s inspection mode to remove dust nibs before the UV cure locks the finish.
ROI tracks quickly	UV systems recoup their cost within 10–20 projects through faster throughput and higher coverage rates.

What working with UV curing every day has taught me

The biggest mindset shift in adopting UV curing is realizing that you control when the finish cures. With traditional polyurethane, the finish dictates your schedule. You apply it and then wait, sometimes 24–72 hours, before the next coat or before the client can use the space. With UV, the finish cures the moment you decide to run the lamp. That control changes how you schedule jobs, how you invoice, and how quickly cash moves through your business.

What I have seen contractors get wrong most often is treating UV curing as a drop-in replacement for polyurethane without adjusting their workflow. The material behaves differently, the equipment requires active maintenance, and the dust control standards are stricter. Contractors who carry that old mindset into UV projects get inconsistent results and blame the technology. The technology is not the problem.

Site-applied UV finishes also give you something factory-prefinished floors cannot: the ability to match a client’s existing floor color, blend custom stains, and address repairs invisibly. That flexibility is a real competitive advantage on restoration projects in older Long Island homes where matching existing wood tones is critical.

My honest advice is to invest in a quality curing machine, track your lamp hours from day one, and separate your sanding and coating areas on every single job. Those three habits eliminate the majority of defects and callbacks that new UV contractors experience.

— Savera

Saverawoodfloorrefinishing brings UV curing expertise to Long Island

Saverawoodfloorrefinishing serves homeowners, property managers, and commercial clients across Long Island with UV-curable hardwood floor refinishing built around dust-free sanding, low-VOC finishes, and same-day turnaround. Whether you manage a restaurant in Smithtown or own a historic home in Setauket, our team delivers floors that are ready for furniture and foot traffic the same day in most cases.

Our process covers full sanding and refinishing, screen and recoat, engineered hardwood refinishing, deep cleaning, and wax removal. Every project uses HEPA-filtered containment to protect your home and MOHR-rated UV finishes for lasting durability. For hardwood floor refinishing in Middle Island and surrounding communities, Saverawoodfloorrefinishing is your trusted local partner. Call us at 631-866-1972 or visit saverawoodfloorrefinishing.com to schedule a consultation.

FAQ

How long does a UV curing floor workflow take?

A full UV curing floor workflow, from sanding through final cure, is completed in a single day on most residential projects. Furniture and foot traffic can return immediately after the final UV cure pass.

What is the MOHR hardness of UV-cured floor finishes?

UV-cured floor finishes achieve a MOHR hardness rating above 80, compared to roughly 60 for traditional polyurethane. That higher hardness means better scratch resistance and longer finish life.

How does UV curing reduce VOC emissions?

UV-curable finishes carry very low solvent content and cure through a light-activated chemical reaction rather than solvent evaporation. This process cuts VOC emissions by up to 90% compared to solvent-based coatings.

Can UV-cured finishes be applied on site, or only in a factory?

Site-applied UV finishes are a distinct product category from factory-prefinished UV floors. Site application allows custom color blending and repair matching that factory finishes cannot provide.

How often do UV curing machine lamps need replacement?

Lamp replacement schedules vary by manufacturer and usage hours, but irradiance output declines before lamps visibly fail. Track operating hours from installation and replace lamps on the manufacturer’s recommended schedule to maintain consistent cure quality.
